Coordination and Irritability

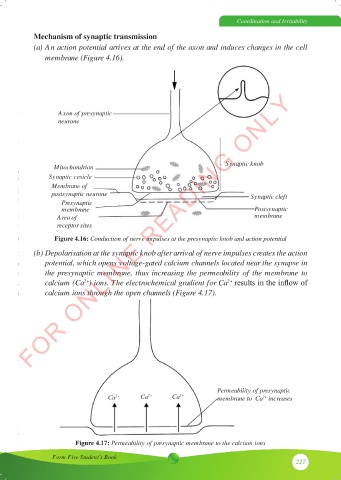

Mechanism of synaptic transmission
(a) An action potential arrives at the end of the axon and induces changes in the cell
membrane (Figure 4.16).

FOR ONLINE READING ONLY

Axon of presynaptic
neurone

Synaptic knob
Mitochondrion
Synaptic vesicle
Membrane of
postsynaptic neurone Synaptic cleft
Presynaptic
membrane Postsynaptic
Area of membrane
receptor sites
Figure 4.16: Conduction of nerve impulses at the presynaptic knob and action potential

(b) Depolarisation at the synaptic knob after arrival of nerve impulses creates the action
potential, which opens voltage-gated calcium channels located near the synapse in
the presynaptic membrane, thus increasing the permeability of the membrane to
calcium (Ca ) ions. The electrochemical gradient for Ca results in the inflow of
2+
2+
calcium ions through the open channels (Figure 4.17).

Permeability of presynaptic
Ca 2+ Ca 2+ Ca 2+ membrane to Ca increases
2+

Figure 4.17: Permeability of presynaptic membrane to the calcium ions
