memory.  The Control Unit interacts  with registers to fetch instructions, decode
              them, and direct the flow of data to the appropriate registers and the ALU.

                       Memory Unit                                                Data bus         Chapter One: Computer architecture

                                                               Control Unit      Address bus
          FOR ONLINE READING ONLY
                       Program Counter (PC)                        (CU)
                                                                                 Control bus


                       Instruction register (IR)



                       Memory Address Register                 Arithmetic and
                                                             Logic Unit (ALU)


                        Accumulator Register




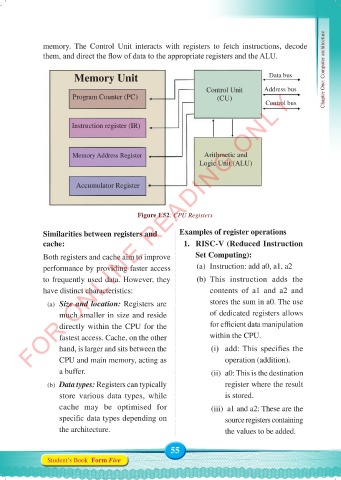

                                           Figure 1.52: CPU Registers

              Similarities between registers and       Examples of register operations
              cache:                                     1.  RISC-V (Reduced Instruction

              Both registers and cache aim to improve       Set Computing):
              performance by providing faster access        (a)  Instruction: add a0, a1, a2
              to frequently used data. However, they        (b)  This instruction adds the
              have distinct characteristics:                    contents of a1 and a2 and
               (a)  Size and location: Registers are            stores the sum in a0. The use
                   much smaller in size and reside              of dedicated registers allows

                   directly within the CPU for the              for efficient data manipulation
                   fastest access. Cache, on the other          within the CPU.
                   hand, is larger and sits between the          (i)  add: This specifies the
                   CPU and main memory, acting as                    operation (addition).
                   a buffer.                                     (ii)  a0: This is the destination

               (b)  Data types: Registers can typically              register where the result
                   store various data types, while                   is stored.
                   cache may be optimised for                    (iii)  a1 and a2: These are the
                   specific data types depending on                  source registers containing
                   the architecture.                                 the values to be added.
