Static multiple issue processors
EX 1 Traditional processors execute instructions
IF ID WB Scalar IPL sequentially, one after the other. Multiple
EX 2 pileline issue processors also known as Very Long
Instruction Word (VLIW) processors,
FOR ONLINE READING ONLY
EX 3 Chapter Two: Performance and optimisation of computer processor
exploit the concept of ILP to improve
performance by exploiting parallelism
EX 1
within the instruction stream. Static
Supercalar IPL
IF ID EX 2 WB pileline multiple issue employ static scheduling
which means that the decision of which
EX 3 instructions to execute concurrently is
made at compile time by the compiler,

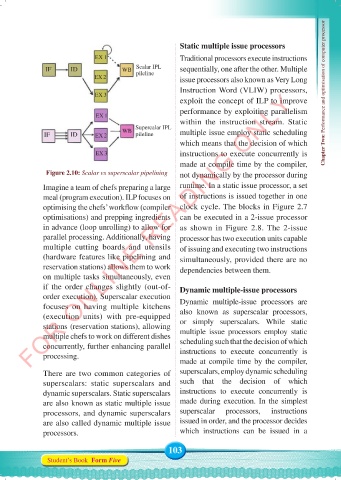

Figure 2.10: Scalar vs superscalar pipelining not dynamically by the processor during
Imagine a team of chefs preparing a large runtime. In a static issue processor, a set
meal (program execution). ILP focuses on of instructions is issued together in one
optimising the chefs’ workflow (compiler clock cycle. The blocks in Figure 2.7
optimisations) and prepping ingredients can be executed in a 2-issue processor
in advance (loop unrolling) to allow for as shown in Figure 2.8. The 2-issue
parallel processing. Additionally, having processor has two execution units capable
multiple cutting boards and utensils of issuing and executing two instructions
(hardware features like pipelining and simultaneously, provided there are no
reservation stations) allows them to work dependencies between them.
on multiple tasks simultaneously, even
if the order changes slightly (out-of- Dynamic multiple-issue processors
order execution). Superscalar execution
focuses on having multiple kitchens Dynamic multiple-issue processors are
(execution units) with pre-equipped also known as superscalar processors,
stations (reservation stations), allowing or simply superscalars. While static
multiple chefs to work on different dishes multiple issue processors employ static
concurrently, further enhancing parallel scheduling such that the decision of which
processing. instructions to execute concurrently is
made at compile time by the compiler,

There are two common categories of superscalars, employ dynamic scheduling
superscalars: static superscalars and such that the decision of which
dynamic superscalars. Static superscalars instructions to execute concurrently is
are also known as static multiple issue made during execution. In the simplest
processors, and dynamic superscalars superscalar processors, instructions
are also called dynamic multiple issue issued in order, and the processor decides
processors. which instructions can be issued in a
